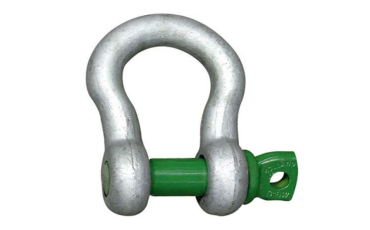

Bow Shackles Screw Pin Type
Features :
- Designed for easy Frequent Application.
- For use on direct lifting or single load systems.
- Traceability code, capacity, FERRETERRO and WLL embossed.
Material : Grade 80 steel with Alloy pin.
Construction : Heat treated and stress relieved.
Finish : Galvanised and coated.
Proof load : Tested at 2 times the working load.
Safety factor : 6 to 1.
Fatigue : Fatigue tested at 1.5 times of WLL.
Standard : As per US federal specification RR-C-271-D.

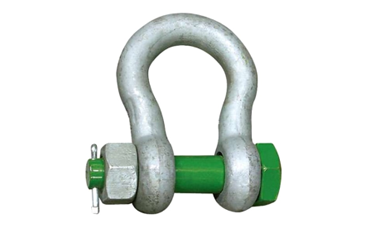

Bow Shackles Nut Bolt Safety Pin Type
Features :
- Designed for easy Frequent Application.
- Enhanced safety with bolt , nut and cotter split pin.
- Reduces the need to tighten pin before each application.
- For use on direct lifting or single load systems.
- Traceability code, capacity, FERRETERRO and WLL embossed.
Material : Grade 80 steel with Alloy pin.
Construction : Heat treated and stress relieved.
Finish : Galvanised and coated.
Proof load : Tested at 2 times the working load.
Safety factor : 6 to 1.
Fatigue : Fatigue tested at 1.5 times of WLL.
Standard : As per US federal specification RR-C-271-D.
ALSO AVAILABLE BOW-SHACKLES IN MS GRADE-30, ALLOY STEEL GRADE 6 & GRADE 8 AS PER ISO 2415, IS: 6132: 1971, IS: 6132: 2003
